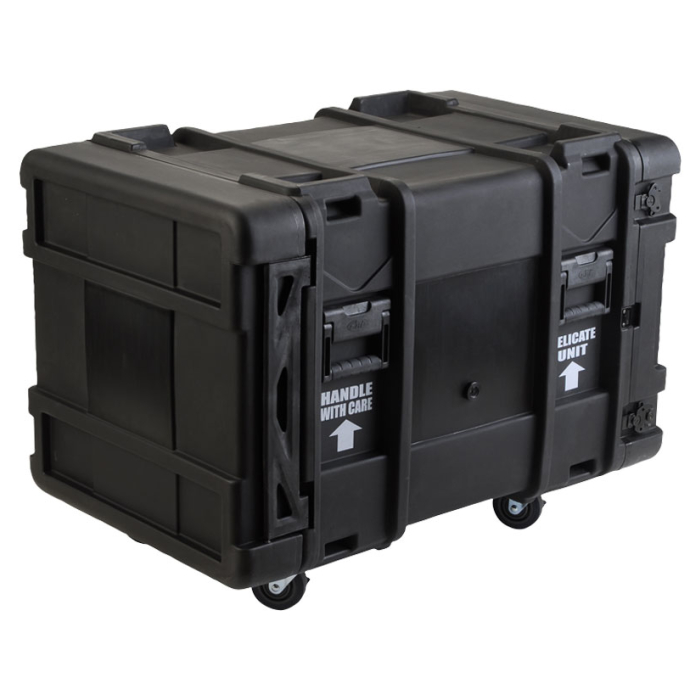

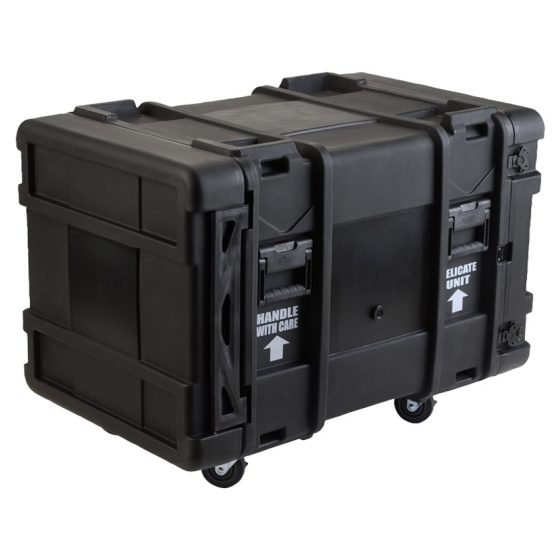

10U 28 in. Roto Shock Rack Transport Case. Lightweight, Shockproof & Water Resistant Case. 3SKB-R910U28 is a readily available design that accommodates multiple Dell and HP servers requiring square rackmounts. Easily transportable design.

Rack Units: 10U
Depth Front Rail to Rear Rail: 29.25 in.
Rackable Width: 19 in. Standard EIA
Lid Depth: 4.5 in.
Interior Dimensions: 29.25 x 19 x 17.5 in.
Exterior Dimensions: 42 x 26.8 x 27.3 in.
Weight: 81.3 Lbs.
Wheels: Caster Wheels

Black


28 in. Deep 10U Roto Shock Rack
28 in. Deep 10U Roto Shock Rack 28 in. Deep 10U Roto Shock Rack 28 in. Deep 10U Roto Shock Rack 28 in. Deep 10U Roto Shock Rack 28 in. Deep 10U Roto Shock Rack 28 in. Deep 10U Roto Shock Rack 28 in. Deep 10U Roto Shock Rack

SKB 10U 28 Inch Deep Roto Shock Rack

One of Specialty Cases’ bestselling products, SKB’s portable shockmount rack cases are where convenience meets maximum protection. These designs are almost always in stock, ready to go, providing an alternative to custom-build wood racks. And since they are rotationally molded of LMDPE for maximum impact resistance, you’ll lose the worry of your equipment being protected. The latest in shockmount technology is all here, with elastomeric shocks, threaded steel rails, and aluminum cross components for strength and durability. And you’ll be backed by SKB’s famous Million Mile Warranty.

28 inch Heavy Duty Shockrack systems include a revolutionary new patented Adjustable Rail Conversion System. The ARCS technology allows the user to adjust the rack width up to 0.5 inches on each side and optional easy-mount adapter rails will convert the equipment mounting standard from 3/16 in. threaded to 7/32 in. through holes or square cage nut windows. Accommodates Dell and Compaq servers utilizing "Versa-rail" or "Rapid-rail" pull-out systems.

Standard features include: (patent pending) compound hinged doors, black powder coated stainless steel latches, removable 4 in. casters. The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to DIA-310 standards. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 lbs. to 150 lbs. in a standard configuration and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation with black powder coated stainless steel latches, gasketed doors and pressure relief valve.

The 28 in. Deep Roto Shock Rack by SKB is an ATA rated roto-molded shock and water resistant rack with wheels. It‘s front and rear rails are compatible with any 19‘ rack-mountable gear but has been especially designed for deep rack-mounted components such as Dell and Compaq servers. This case is built for impact.

  • 28 in. Deep 10U ATA rated roto-molded shock and water resistant rack with 4 in. wheels
  • Includes Adjustable Rail Conversion System (ARCS)
  • Patent compound hinged door system
  • Stainless steel key lockable field replaceable latches
  • Controls the harmful effects of shock and vibration
  • Rear rails
  • Field Replaceable Removable 4 in. casters (standard)
  • Stacks securely with the wheels on or off
  • Shock and water resistant
  • Roto molded for strength
  • Gasketed sealed doors
  • Recessed latches
  • Airtight design
  • Automatic ambient pressure relief valve (standard)
  • Adjustable elastomer shock absorbers
  • Provisions to add additional shocks
  • Mounting hardware in the racks is easy with the provided hardware
  • Molded handles provide an easy and secure grasping point
  • Compound hinged doors with recessed black powder coated stainless steel latches
  • Accommodates Deep Components such as Dell and Compaq servers
  • Eight adjustable elastomer shock absorbers with provisions to add additional shocks for heavier loads
  • Military twist hasp, recessed latches
  • Meets most ATA and Military specifications
  • Includes Million Mile Warranty
  • Proudly Made in the USA

UPC Code:
3SKB-R910U28 – 789270091061

More Information
SKU3SKB-R910U28
BrandSKB Cases
Interior (LxWxH)29.25 x 19 x 17.5 in.
Exterior (LxWxH)42 x 26.8 x 27.3 in.
Carton Dimensions43 x 27.5 x 27 in.
Weight81.3 Lbs.
ColorBlack
Rack Units10U
Rack Depth29.25 in.
Depth Front Rail To Back Lid33.75 in.
Rail TypeSquare
Lid Depth4.5 in.
WheelsCaster Wheels
HandleRubber Over-Molded Spring Loaded Handles
LatchesRecessed Heavy Duty Twist Latches
HingesCompound Hinge System
Shock AbsorbersYes
StackableYes
Standard Payload40 to 150 Lbs.
Optional Payload160 to 300 Lbs (3SKB-SA)
Body MaterialLinear Medium Density Polyethylene (LMDPE)
Manufacturing ProcessRoto Molded
Water ResistanceWater Resistant
RatingATA Rated
